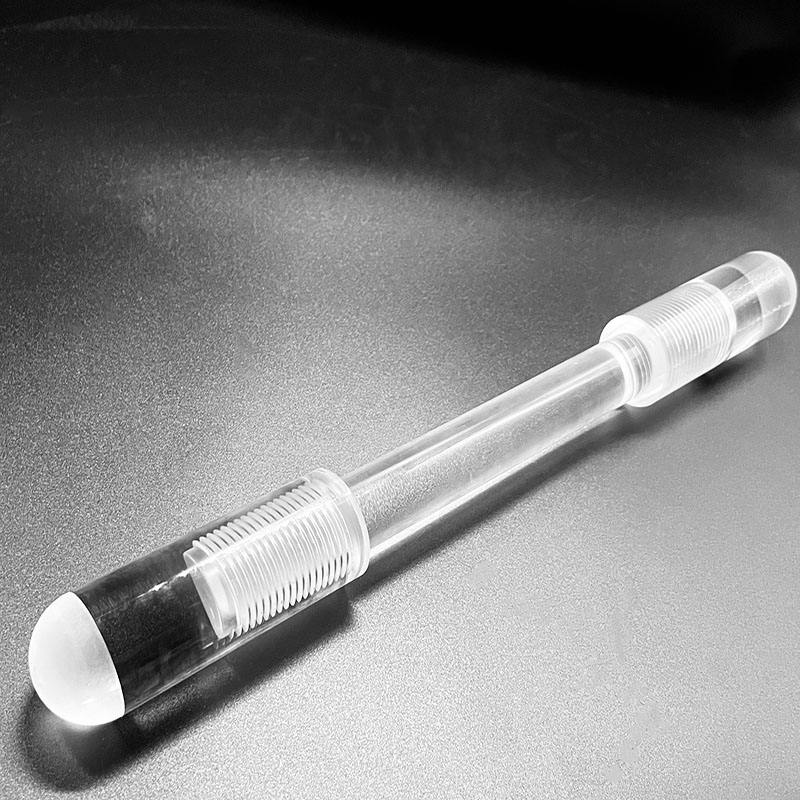

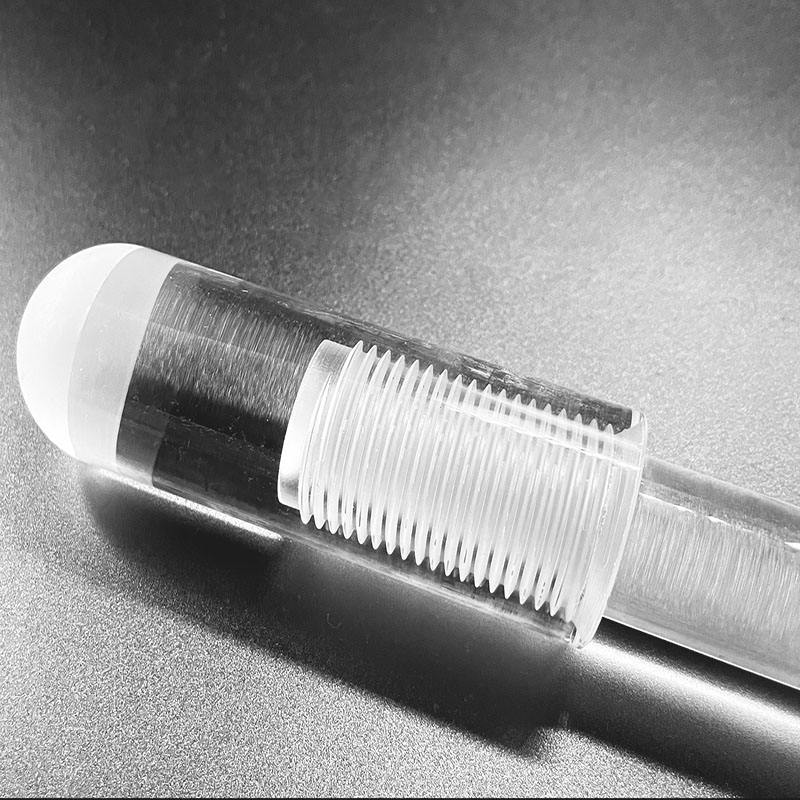

Quartz Rod with Grooved Sections
This quartz rod with grooved sections is manufactured from high-purity fused silica and processed through precision CNC machining or flame working. Grooves, slots, threading, and end-face machining can be customized to meet application-specific requirements.
The material offers exceptional thermal stability, low thermal expansion, and excellent chemical resistance, making it suitable for laboratories, semiconductor equipment, optical systems, and industrial heating environments.
We support custom dimensions, groove depth, spacing, end shapes, and tolerances based on drawings or samples.
we can customized all kinds of quartz glass product service
according to your
request/sample/drawing
| Brand | Lianyungang Tuguan Quartz |
| Production Name | Quartz Rod with Grooved Sections |
| Material | 99.99% Pure Quartz |
| Thickness | 0.2-100mm |
| Processing Service | Bending, Welding, Punching, Cutting, Moulding |
| Color | transparent |
| Size | customized |
| Surface Quality | 60/40 |
| Application | Optical/Semi/Industry |
| Density | 2.2×103 kg/m3 | Hardness | 5.5 – 6.5 Mohs’ Scale 570 KHN 100 |
| Design Tensile Strength | 4.8×107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7×1010 Pa (5.3×106 psi) | Rigidity Modulus | 3.1×1010 Pa (4.5×106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
- SiO2> 99.99% ,high purity quartz tube.
- Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
- Excellent visual and chemical performance .
- without surface coating and infectant.
- Health care and environmental protection
- Any dimension can be made.
- CE.RoHs SGS approved.
