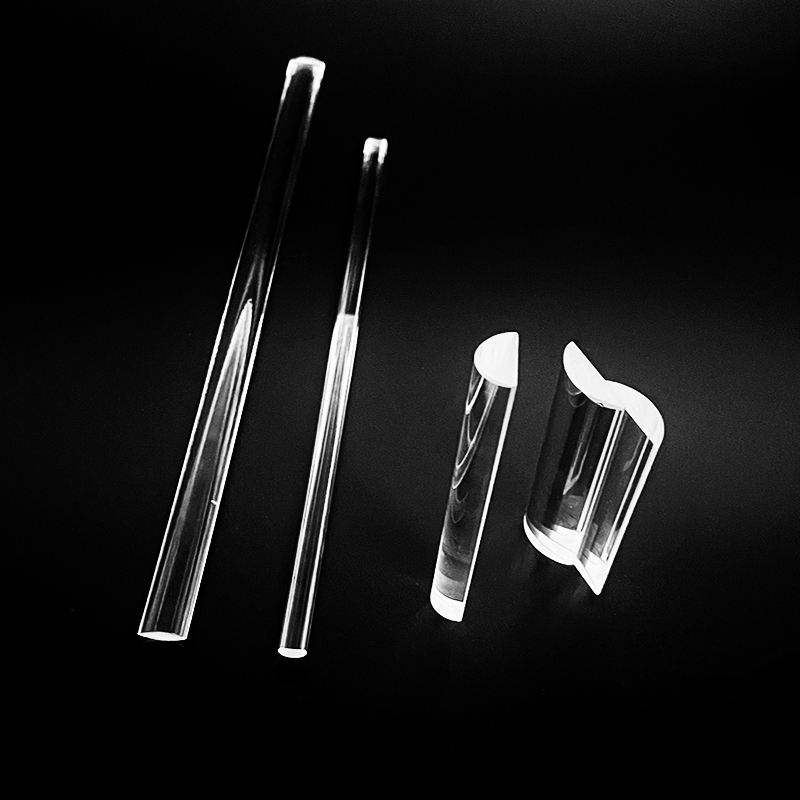

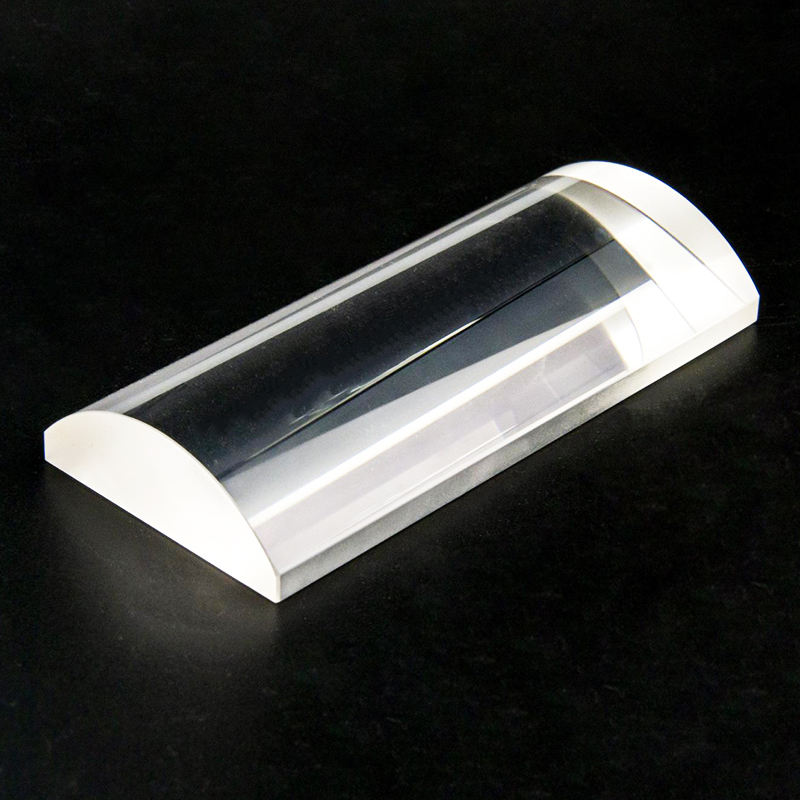

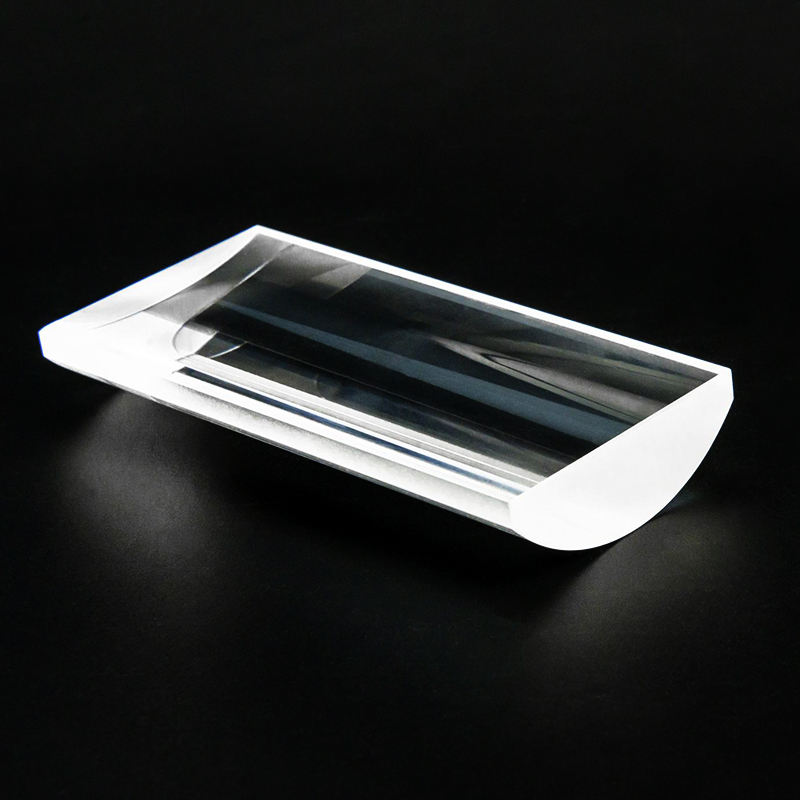

Quartz cylindrical lens
This quartz cylindrical lens is made from high-purity fused silica and designed to focus, shape, or collimate light in one dimension. It offers excellent UV–IR transmission, low thermal expansion, and high laser damage resistance, making it suitable for laser systems, optical testing equipment, imaging devices, and scientific instruments.
Curvature radius, length, width, thickness, and surface accuracy can all be customized. High-precision polishing, chamfering, and coating options are available to meet advanced optical requirements.
we can customized all kinds of quartz glass product service
according to your
request/sample/drawing
| Brand | Lianyungang Tuguan Quartz |
| Production Name | Quartz Cylindrical Lens |
| Material | 99.99% Pure Quartz |
| Thickness | 0.2-100mm |
| Processing Service | Bending, Welding, Punching, Cutting, Moulding |
| Color | transparent |
| Size | customized |
| Surface Quality | 60/40 |
| Application | Optical/Semi/Industry |
| Density | 2.2×103 kg/m3 | Hardness | 5.5 – 6.5 Mohs’ Scale 570 KHN 100 |
| Design Tensile Strength | 4.8×107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7×1010 Pa (5.3×106 psi) | Rigidity Modulus | 3.1×1010 Pa (4.5×106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
- SiO2> 99.99% ,high purity quartz tube.
- Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
- Excellent visual and chemical performance .
- without surface coating and infectant.
- Health care and environmental protection
- Any dimension can be made.
- CE.RoHs SGS approved.
