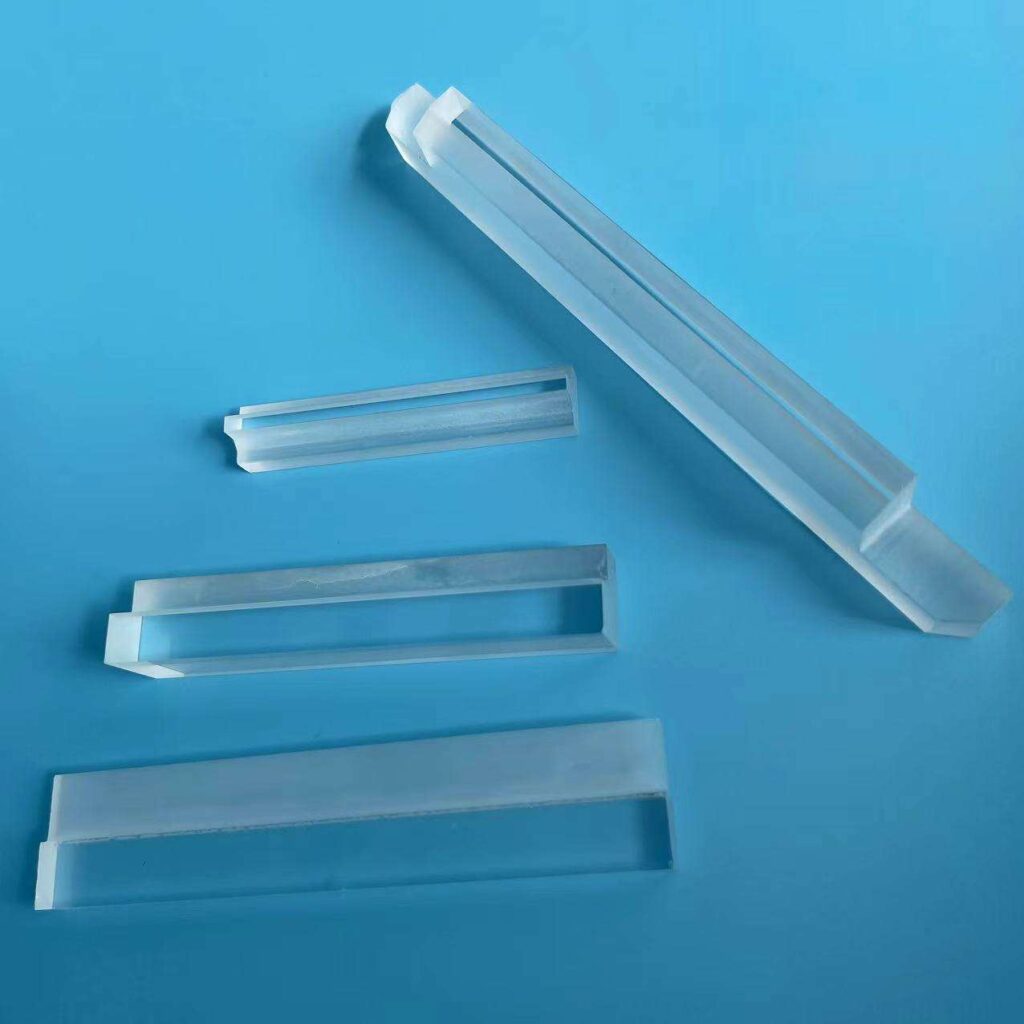

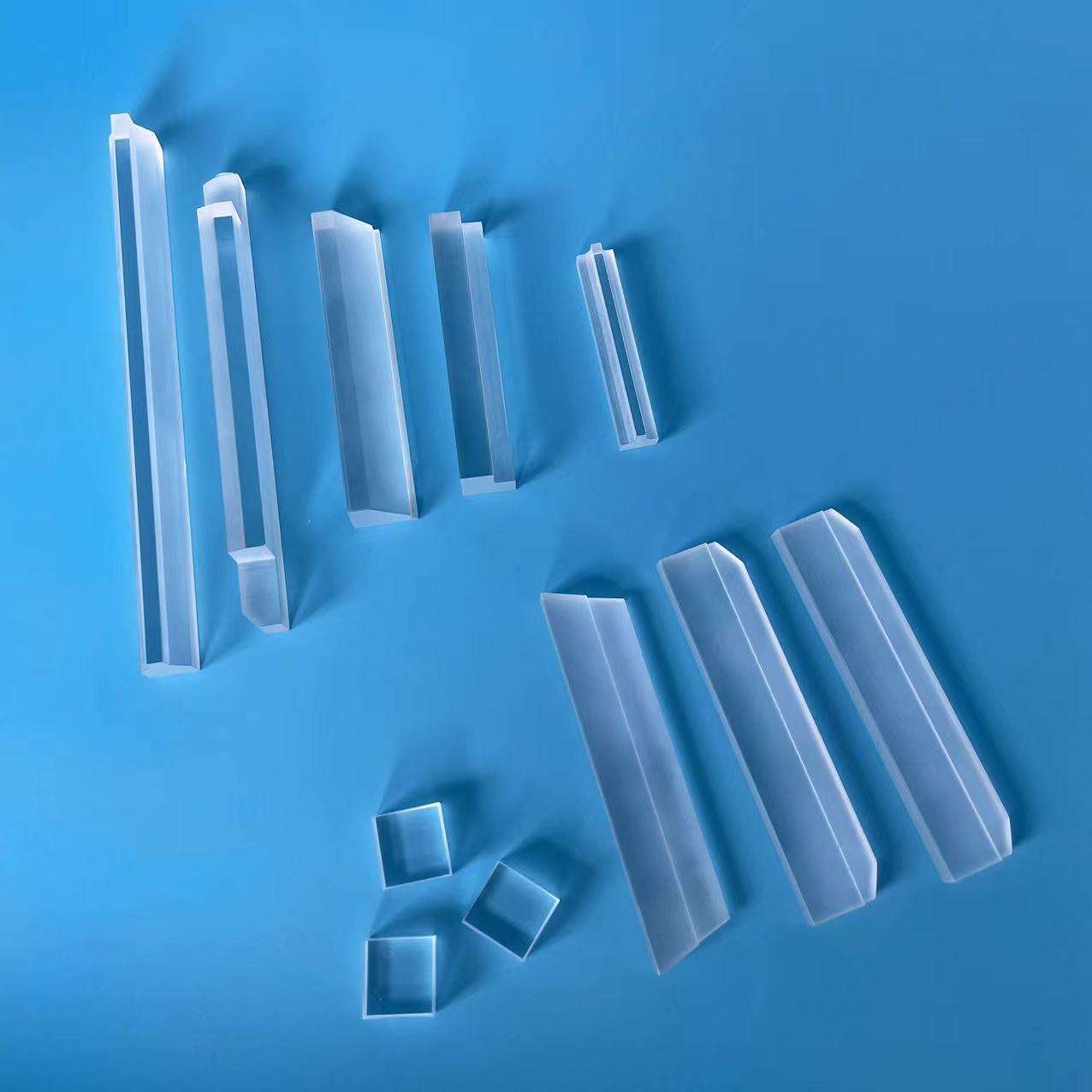

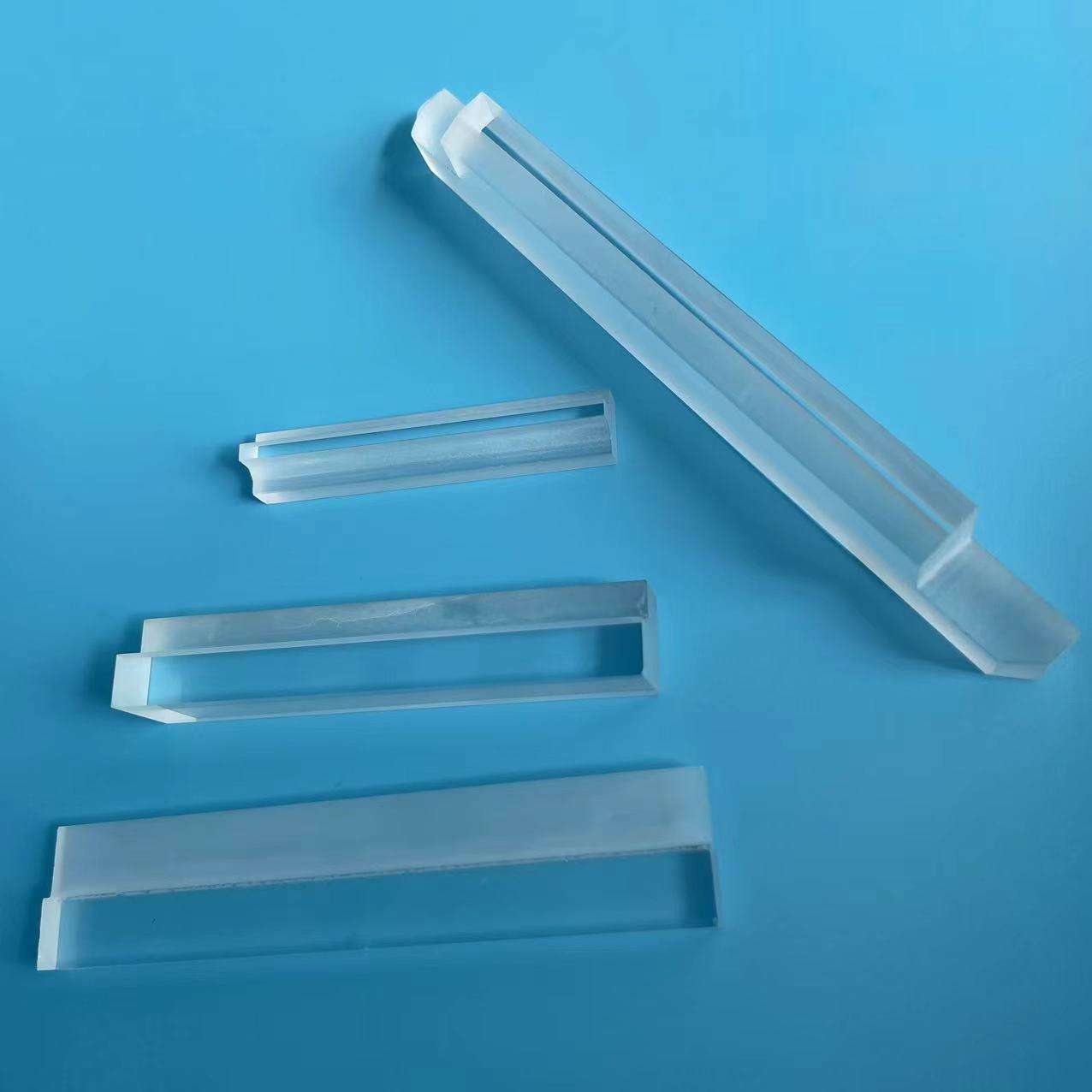

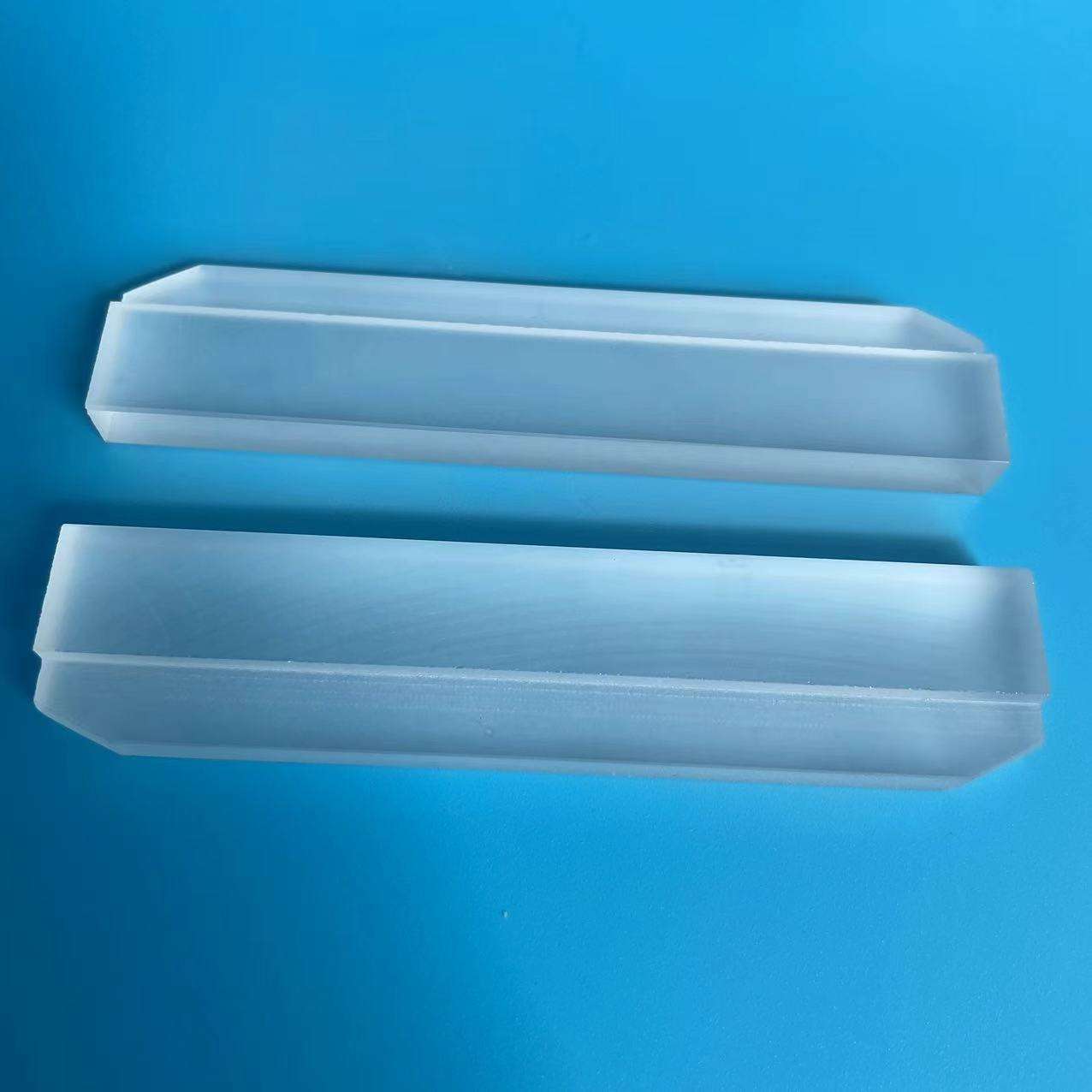

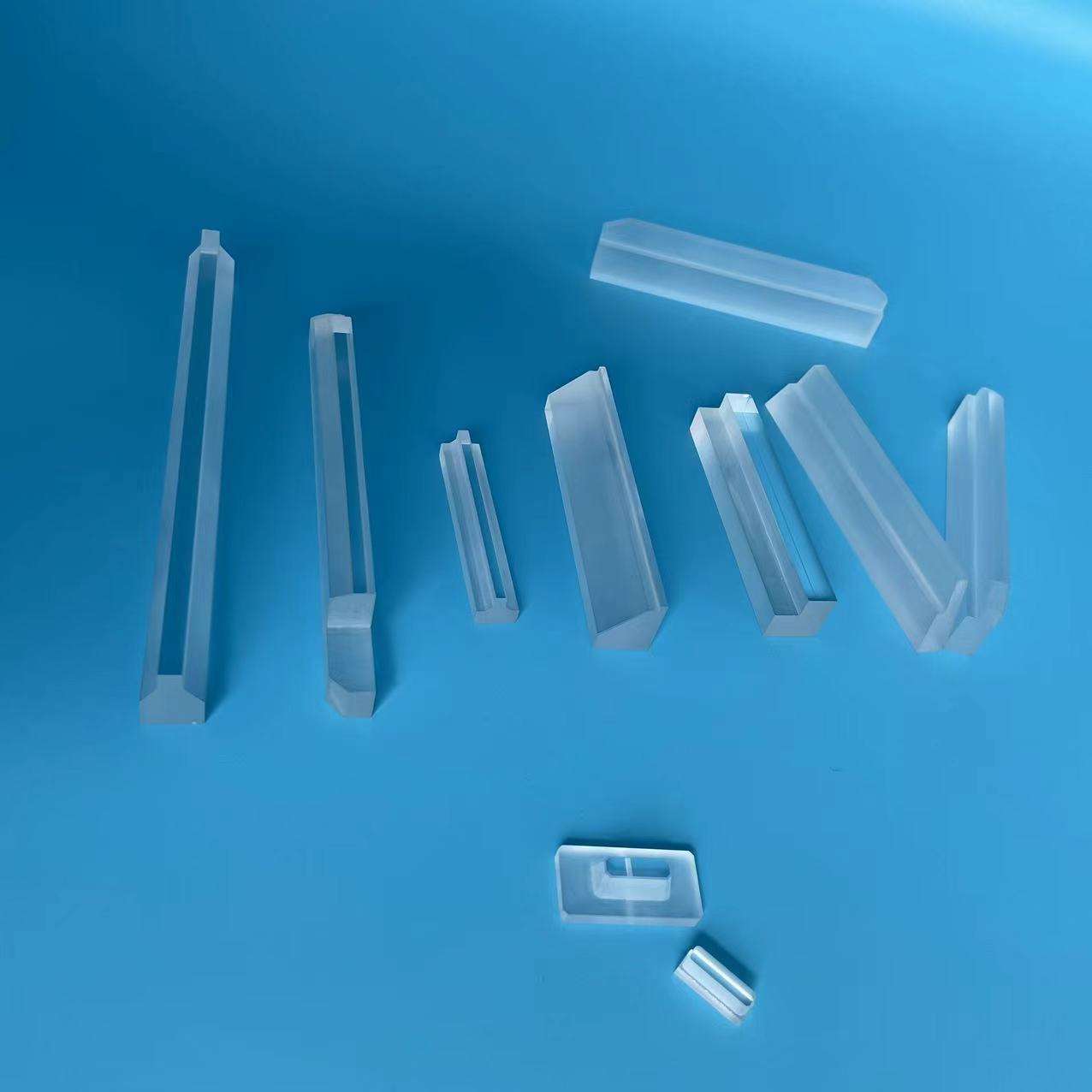

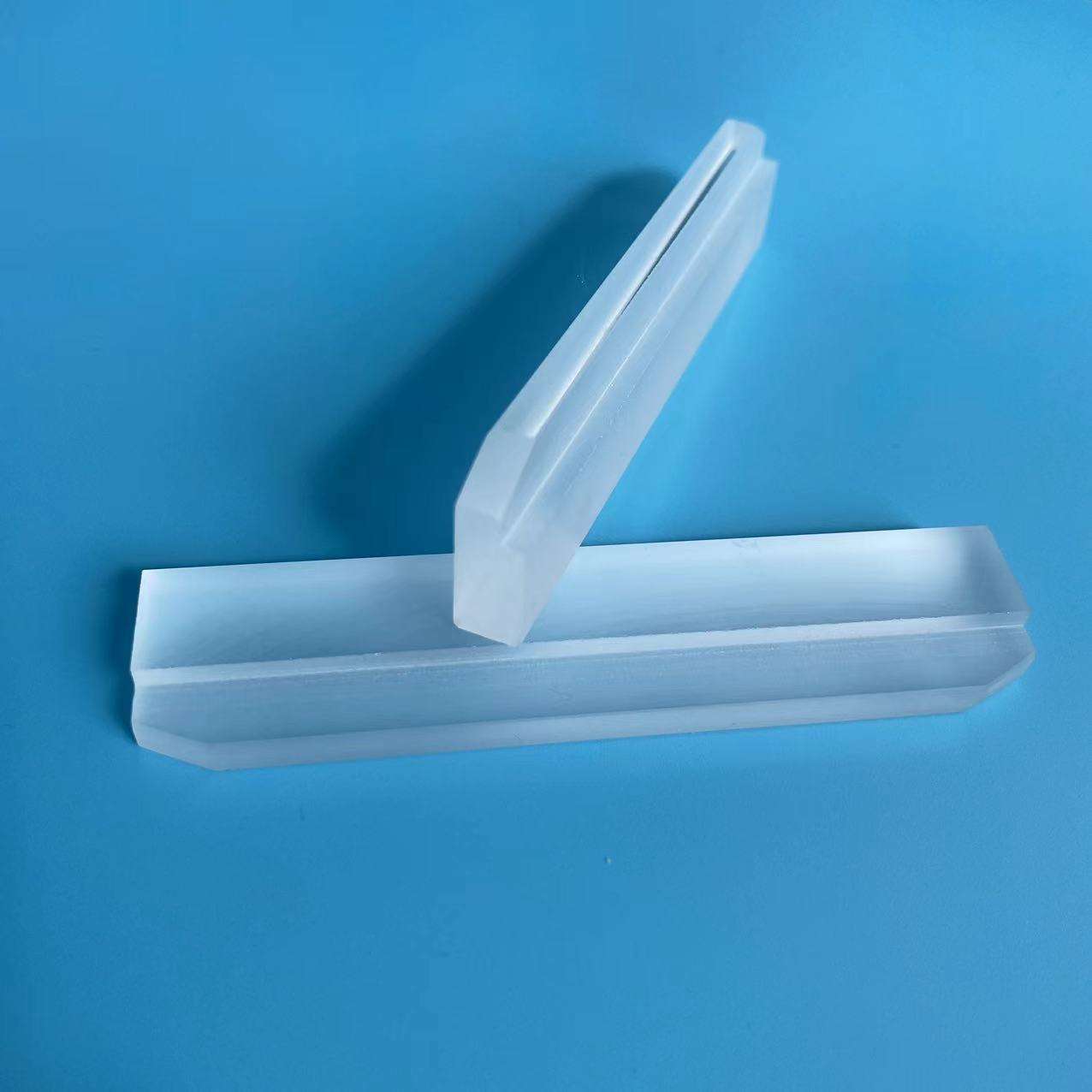

Quartz Bars with Machined Grooves
These quartz bars with machined grooves are made from high-purity fused silica and processed using precision CNC grinding, slotting, and profiling. The grooves and channels can be customized to support structural positioning, fluid or gas flow, laser alignment, or mechanical integration.
Quartz bars provide excellent thermal stability, low expansion, and high chemical resistance, making them suitable for semiconductor tools, laboratory fixtures, optical systems, and high-temperature industrial setups.
Dimensions, groove depth, width, angle, and tolerances can be manufactured according to drawings or samples, with optional polishing, chamfering, and edge finishing.
we can customized all kinds of quartz glass product service
according to your
request/sample/drawing
| Brand | Lianyungang Tuguan Quartz |
| Production Name | Quartz Bars with Machined Grooves |
| Material | 99.99% Pure Quartz |
| Thickness | 0.2-100mm |
| Processing Service | Bending, Welding, Punching, Cutting, Moulding |
| Color | transparent |
| Size | customized |
| Surface Quality | 60/40 |
| Application | Optical/Semi/Industry |
| Density | 2.2×103 kg/m3 | Hardness | 5.5 – 6.5 Mohs’ Scale 570 KHN 100 |
| Design Tensile Strength | 4.8×107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7×1010 Pa (5.3×106 psi) | Rigidity Modulus | 3.1×1010 Pa (4.5×106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
- SiO2> 99.99% ,high purity quartz tube.
- Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
- Excellent visual and chemical performance .
- without surface coating and infectant.
- Health care and environmental protection
- Any dimension can be made.
- CE.RoHs SGS approved.
