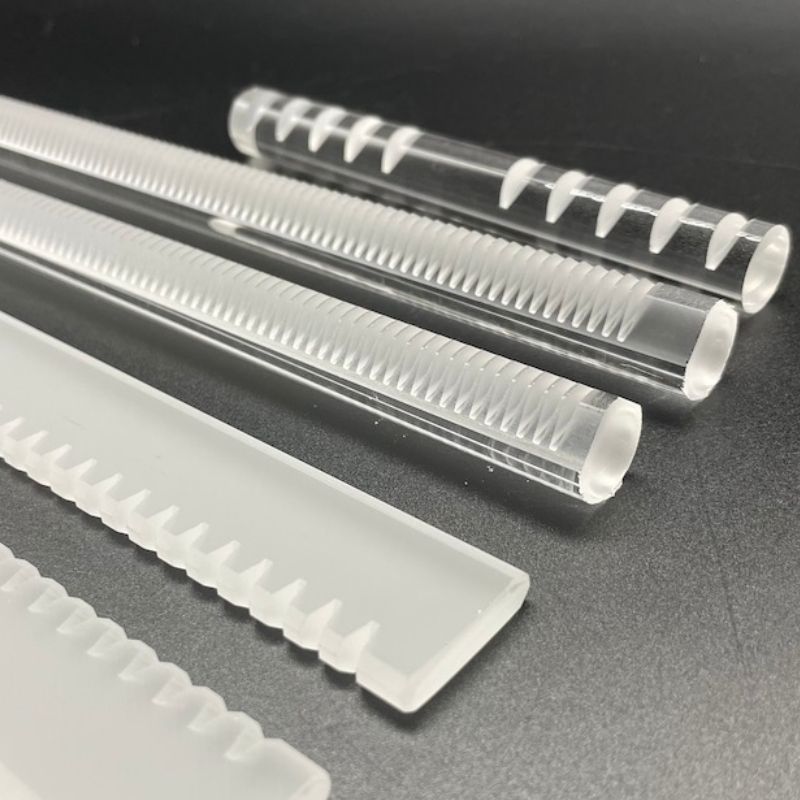

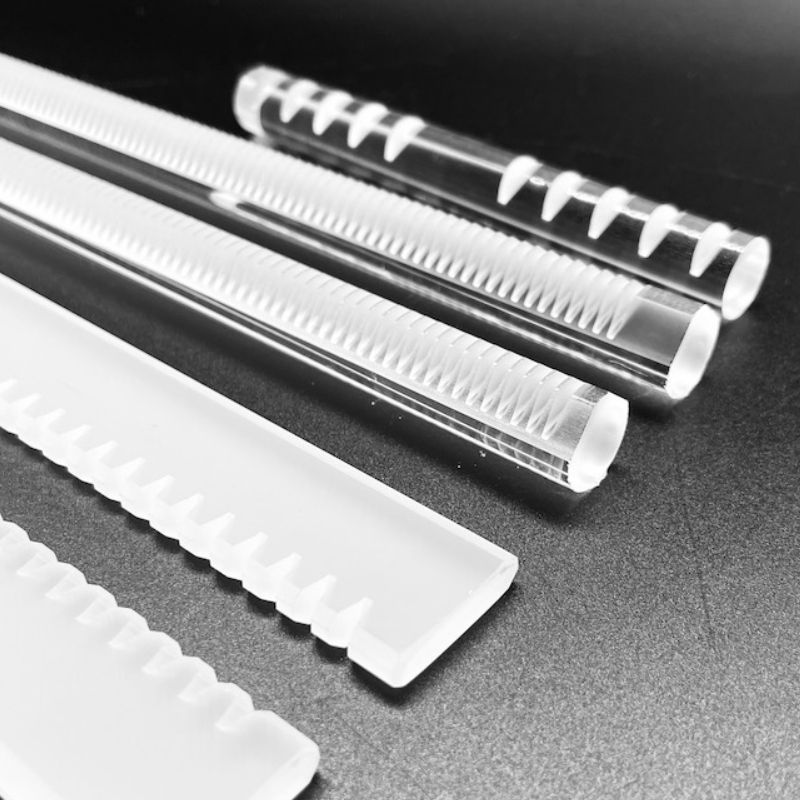

Precision Machined Quartz Grooved Rod
This precision machined quartz grooved rod is produced from high-purity fused silica and processed using CNC grinding, slotting, and diamond-tool machining. The grooves can be designed in various shapes, including straight, angular, V-shaped, spiral, or stepped patterns.
These rods offer excellent thermal resistance, low expansion, and strong chemical stability, making them ideal for laboratory instruments, semiconductor equipment, mechanical alignment systems, and custom structural components.
We support full customization, including rod diameter, length, groove spacing, depth, width, and tolerances. Optional fine polishing, end-face processing, and assembly-related machining are available according to technical drawings or samples.
we can customized all kinds of quartz glass product service
according to your
request/sample/drawing
| Brand | Lianyungang Tuguan Quartz |
| Production Name | Precision Machined Quartz Grooved Rod |
| Material | 99.99% Pure Quartz |
| Thickness | 0.2-100mm |
| Processing Service | Bending, Welding, Punching, Cutting, Moulding |
| Color | transparent |
| Size | customized |
| Surface Quality | 60/40 |
| Application | Optical/Semi/Industry |
| Density | 2.2×103 kg/m3 | Hardness | 5.5 – 6.5 Mohs’ Scale 570 KHN 100 |
| Design Tensile Strength | 4.8×107 Pa (N/m2) (7000 psi) | Design Compressive Strength | Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730 |
| Bulk Modulus | 3.7×1010 Pa (5.3×106 psi) | Rigidity Modulus | 3.1×1010 Pa (4.5×106 psi) |
| Softening Point | 1730°C | Annealing Point | 1215°C |
- SiO2> 99.99% ,high purity quartz tube.
- Operating Temperature: 1250℃ SoftenTemperature: 1730℃.
- Excellent visual and chemical performance .
- without surface coating and infectant.
- Health care and environmental protection
- Any dimension can be made.
- CE.RoHs SGS approved.
